The VLX 138 Panoramic Sliding Door is a large-span aluminum slider built for homeowners who want a wall of glass between their living space and the South Florida outdoors. Panels glide on stainless steel bearings and the frame can stretch up to 36 feet wide, which means fewer vertical interruptions and more uninterrupted water or garden views. TruePane Windows & Doors is an authorized ViewLux installation partner serving Deerfield Beach, so you get factory-backed product knowledge plus local installation expertise. Call (786) 743-5882 to talk about your project and get a free on-site measurement.

Call (786) 743-5882

Product Overview - VLX 138 Panoramic Sliding Door

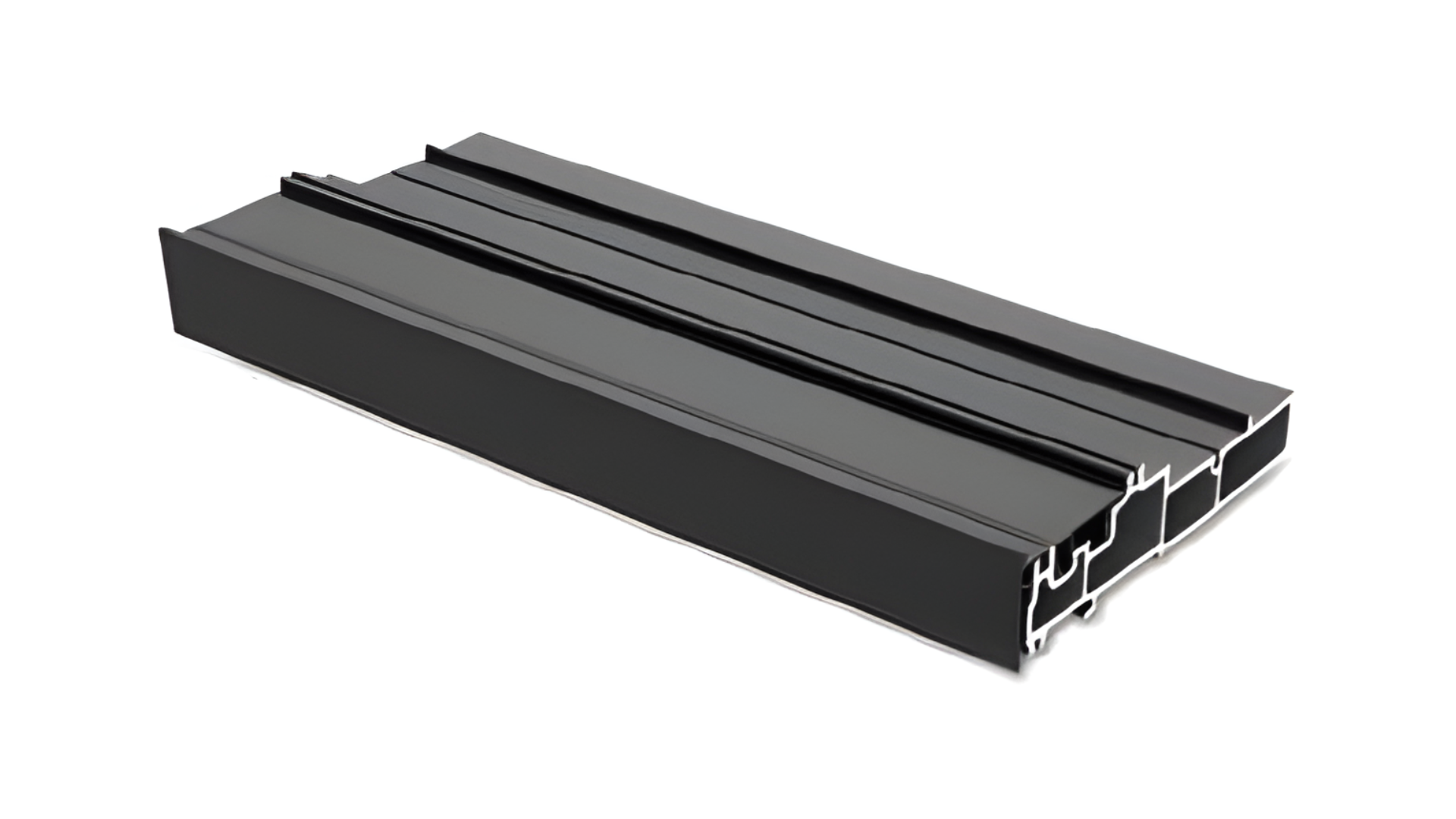

The VLX 138 series answers one design question: how do you open an entire wall without sacrificing energy performance or structural integrity? ViewLux engineered this door with a 0.138-inch wall thickness in the aluminum profile, giving the frame real torsional strength over wide spans. The profile width sits at 1.535 inches, slim enough to keep sightlines clean but substantial enough to carry heavy laminated glass panels without sagging.

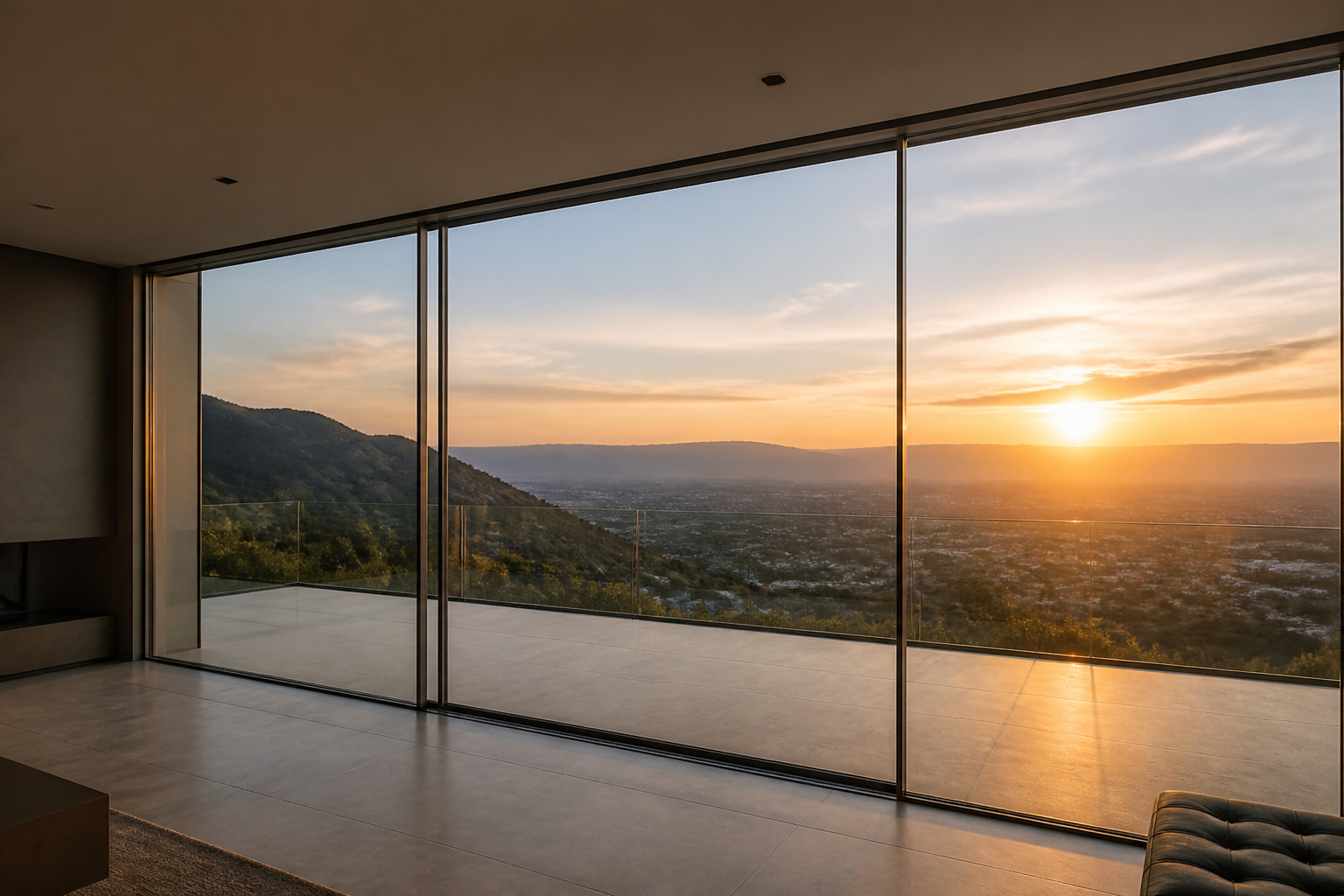

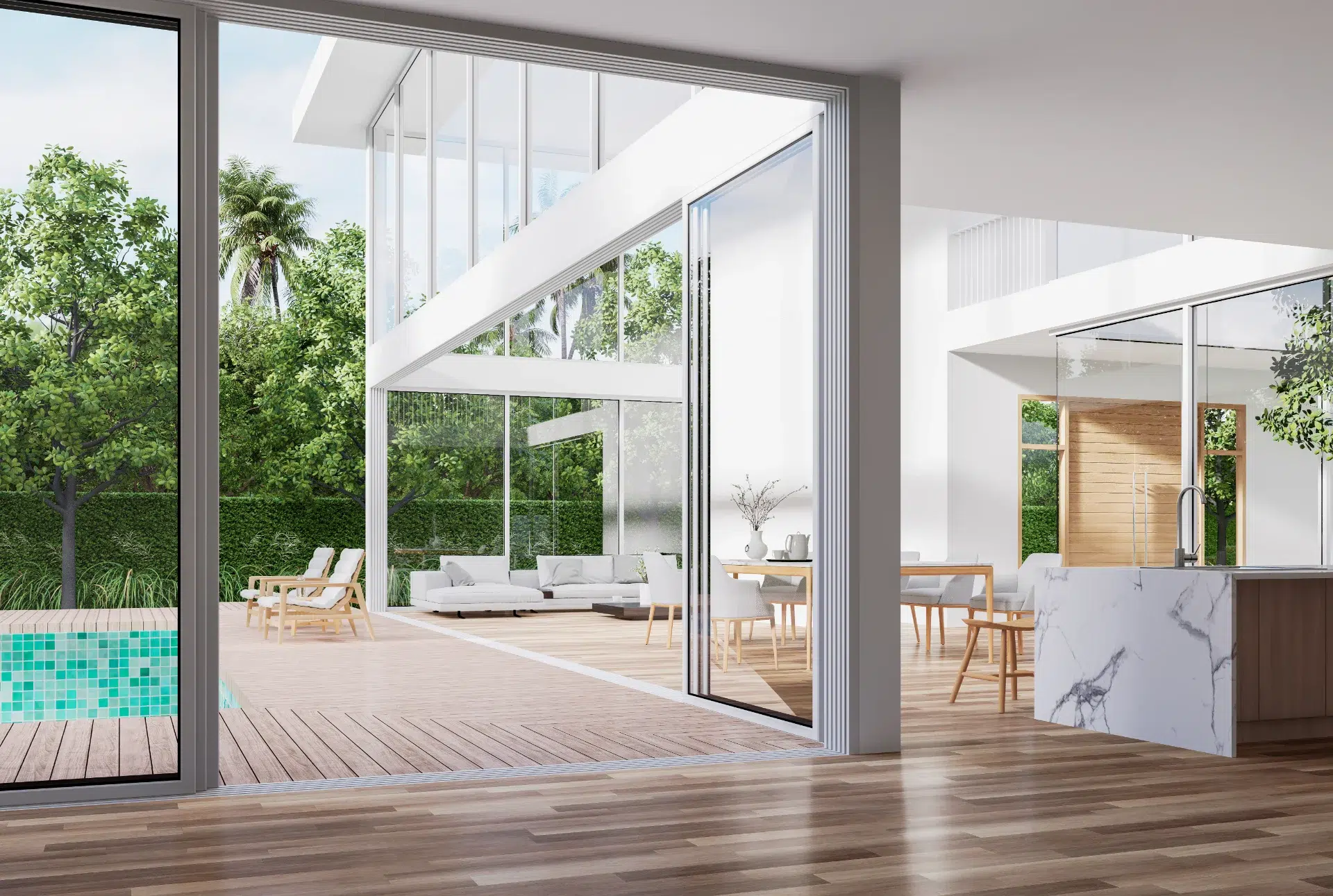

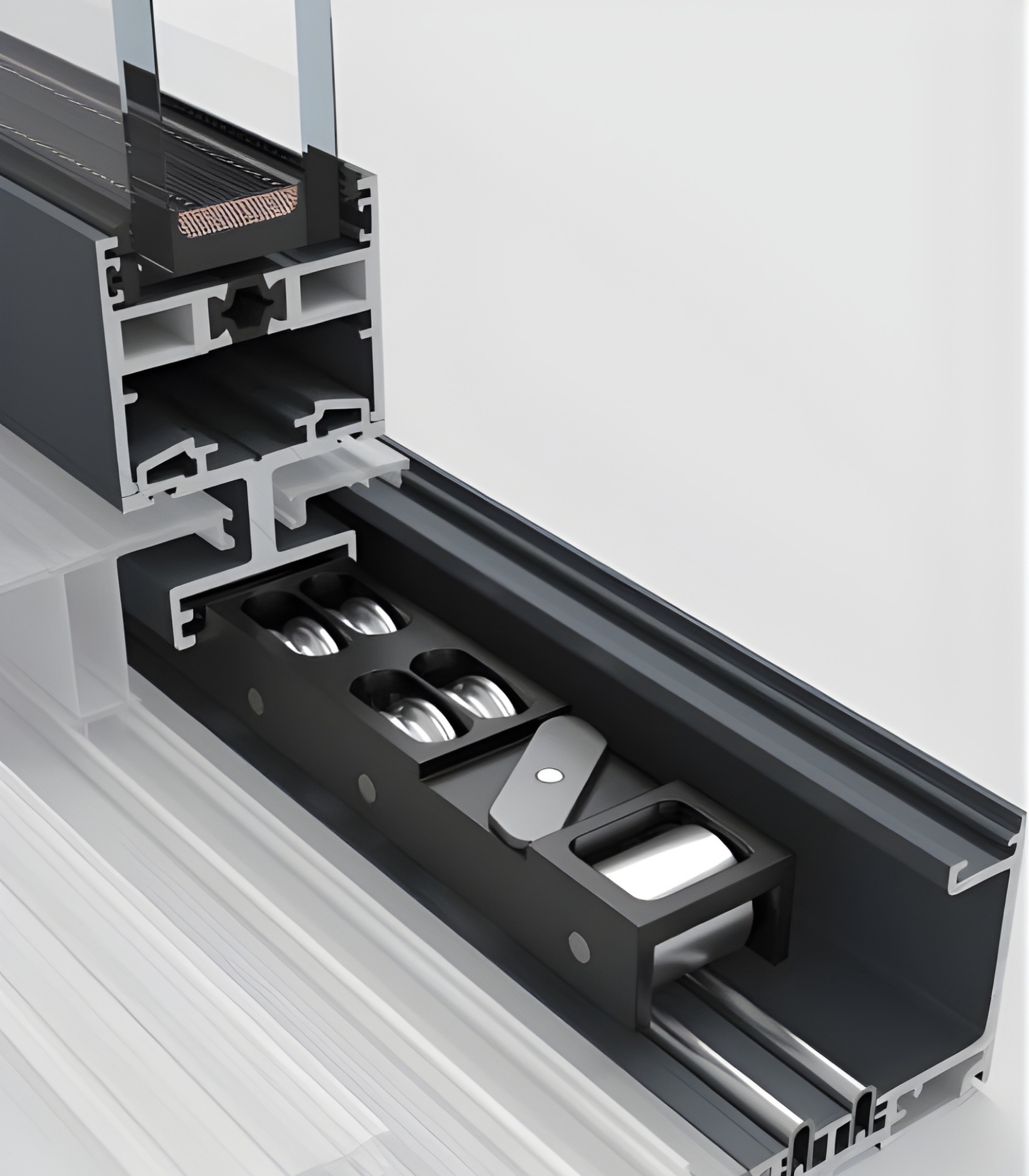

What makes the panoramic name honest is the bearing system. Each panel rides on stainless steel bearings, and you feel it the first time you push the door. There’s no dragging, no stutter, no need to muscle a 300-pound panel across the track. The glide is the product. Homeowners in Deerfield Beach choose this series for modern builds, mid-century remodels, and condo renovations where the view is the asset. Whether you’re looking across the Intracoastal, a pool deck, or a landscaped yard, the VLX 138 is built to disappear between you and what you’re looking at.

TruePane Windows & Doors recommends this door for openings where clients want three or four panels, want a corner pocket configuration, or want to replace an aging patio slider with something that actually feels like a feature rather than a compromise. Because we install it by AAMA standards, the door performs to the same spec ViewLux designed it to, and the warranty stays intact.

Technical Specifications

Here’s what you’re actually buying when you order a VLX 138 through TruePane Windows & Doors in Deerfield Beach. These numbers matter because they determine how the door fits in your rough opening, how much glass you see, and how it holds up to Florida weather:

• Wall thickness: 0.138 inches, giving the extrusion the rigidity needed for wide spans and impact-rated glass packages
• Profile width: 1.535 inches, a narrow sightline that preserves the view while maintaining structural strength
• Maximum span: Up to 36 feet, configurable as a 2-track, 3-track, or 4-track system depending on how many panels you want
• Track configurations: 2-track, 3-track, and 4-track layouts for wall pockets, corner openings, and center-opening designs
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, and Gray Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood
• Screen options: Retractable screen or sliding screen
• Sill options: Flush sill, low-profile sill, or recessed sill

Performance standards include NFRC-rated thermal break technology, AAMA 2400/2410 installation compliance, and AAMA 812 low-expansion foam sealant used on every perimeter joint TruePane installs.

Performance Features

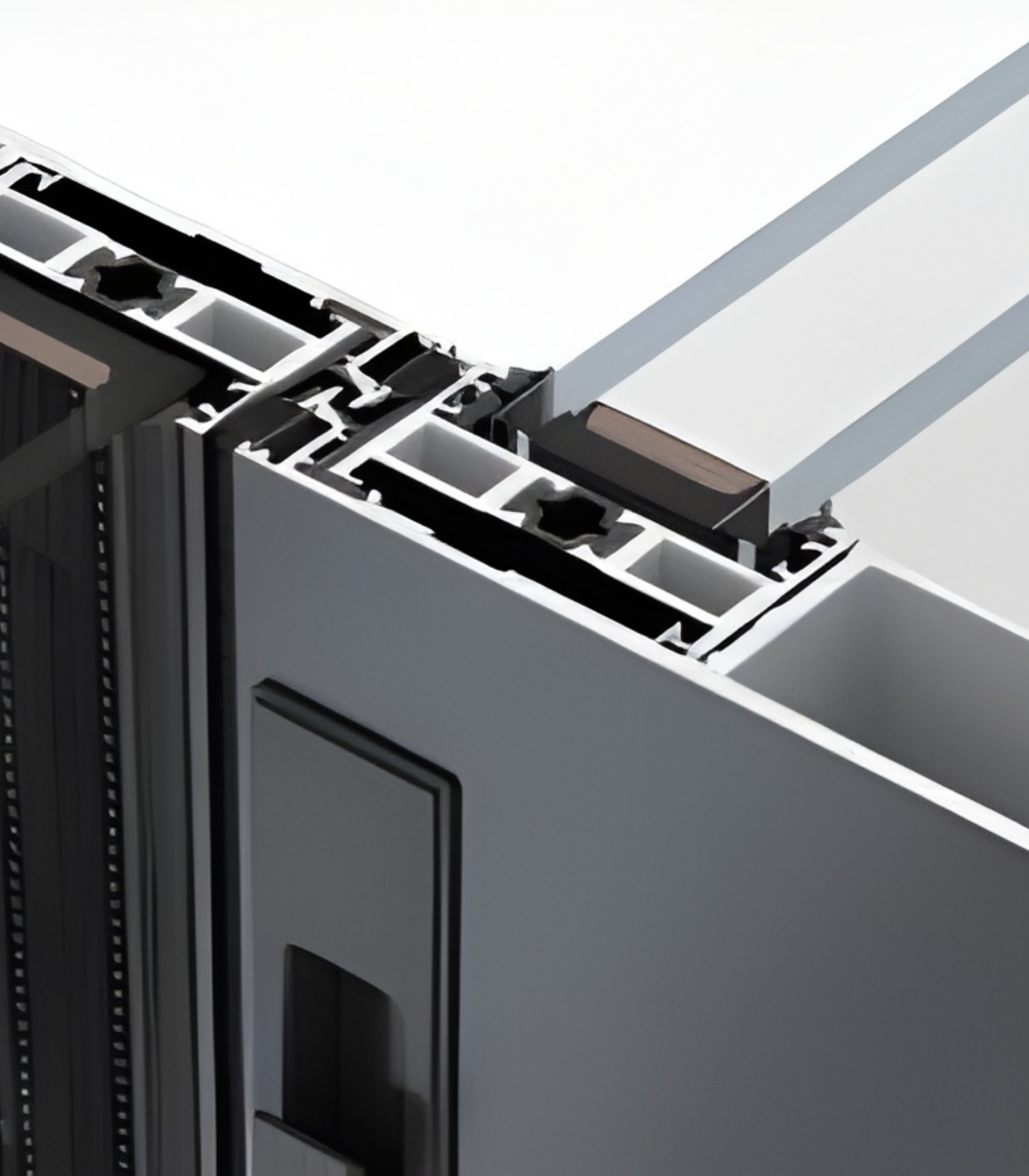

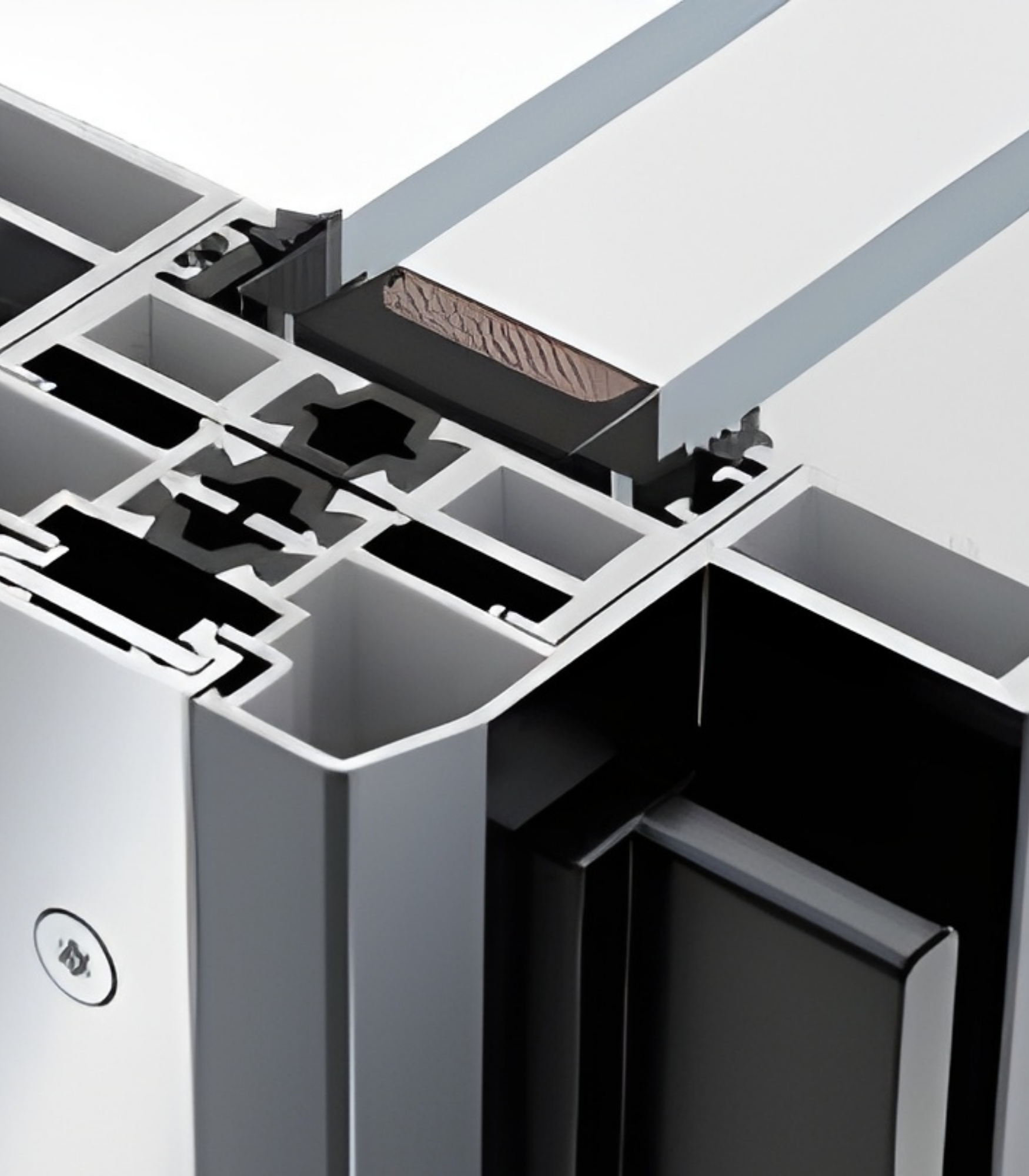

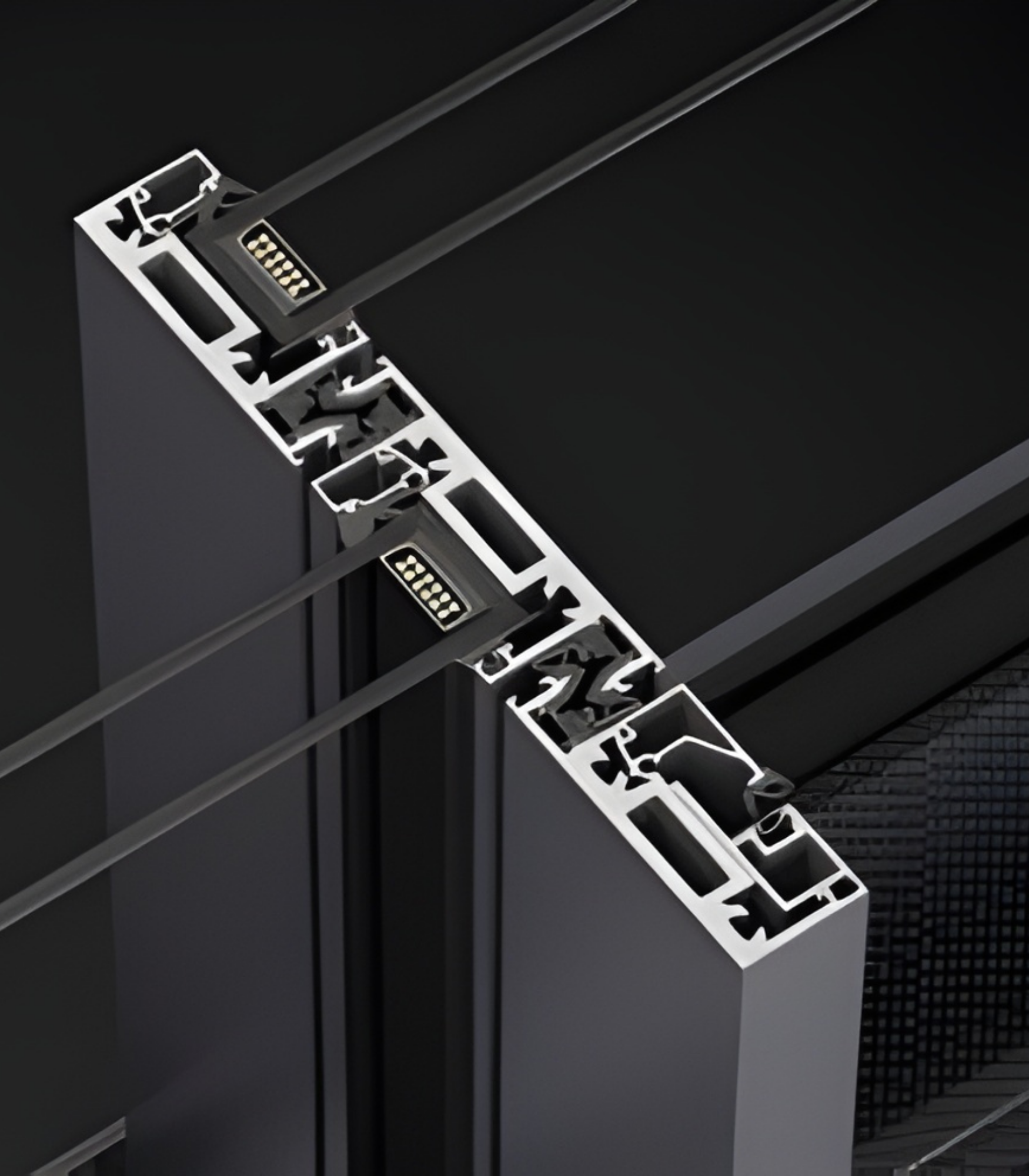

Thermal Efficiency. The VLX 138 uses a full thermal break in the aluminum frame, which interrupts the conductive path that makes raw aluminum a poor insulator. This is NFRC-rated performance, meaning the heat you keep out of your Deerfield Beach living room in August is measured, not estimated. Low-E glass compounds the benefit by reflecting infrared heat while still passing visible light.

Acoustic Performance. The same perimeter sealing that keeps water out also keeps noise out. With laminated glass specified, the VLX 138 meaningfully cuts sound transmission from streets, lawn equipment, and the general ambient noise of coastal Florida living. Our clients near Federal Highway or Dixie Highway notice the difference immediately.

Airtightness & Weather Seal. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps without distorting the frame. This prevents the slow air leakage that makes a room feel drafty and drives up cooling costs. The sealant spec matters because house wrap and tape alone won’t hold up over a decade of South Florida humidity.

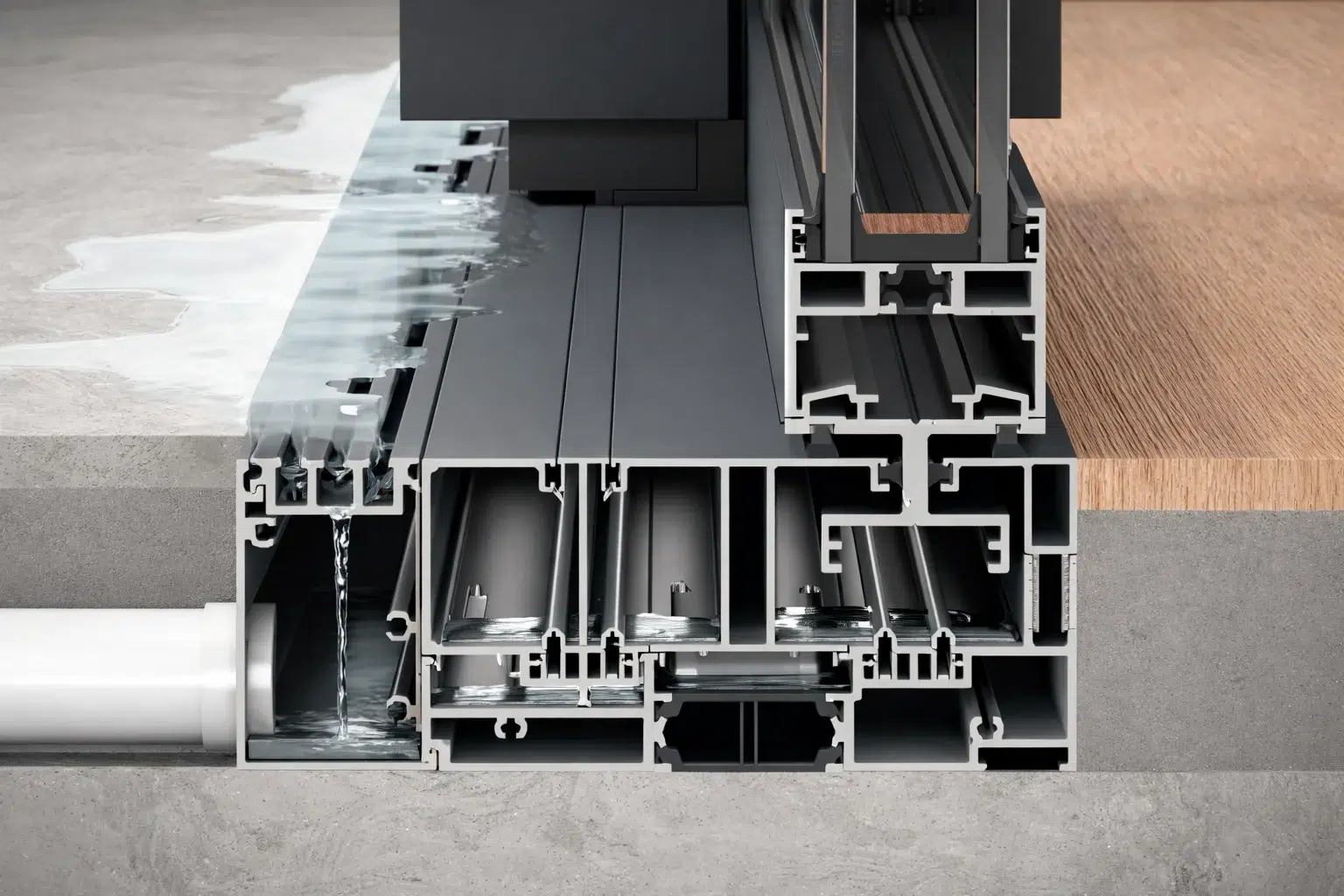

Waterproofing. The VLX 138’s sill design channels water away from the interior even under wind-driven rain. Backed by proper sill flashing and slope, the door resists the sideways rain patterns common during Deerfield Beach summer storms. TruePane installs the sill pan, flashing tape, and sealant bead as a system, not as separate steps.

Wind Resistance. This door is wind-load rated for the requirements of Broward County’s building envelope. With the impact-resistant laminated glass option, the VLX 138 meets High Velocity Hurricane Zone requirements for coastal installations. That matters if your property sits east of the Intracoastal or in a designated wind-borne debris region.

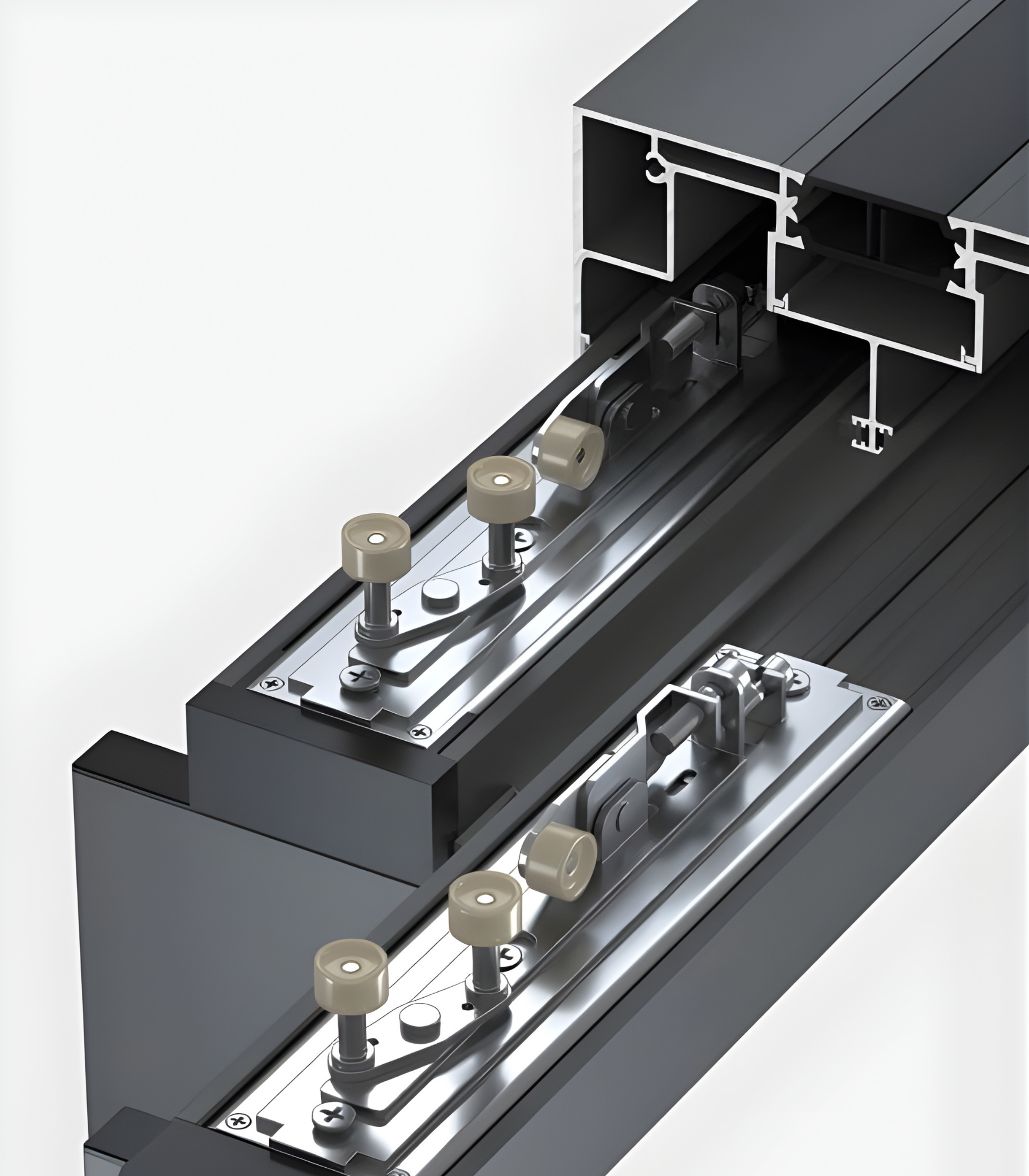

Security & Hardware. Multi-point locking engages along the full height of the panel rather than a single latch point. Paired with tempered or laminated glass, the door is a genuine deterrent against forced entry. The stainless steel bearing hardware also means there’s no corrosion-driven stiffness on salt-exposed properties near the beach.

Color & Glass Options

The VLX 138 comes in six finishes, and the right one depends on the architecture. Premium Black reads contemporary and works beautifully on modern farmhouse and transitional homes popping up across Deerfield Beach. Pure White suits coastal and Mediterranean exteriors where window and door trim are already white. Anodized Silver is the quiet choice for condos and commercial storefront aesthetics. Bronze and Champagne lean warm and pair well with travertine, coral stone, and the earth-toned exteriors common in established neighborhoods like The Cove or Crystal Lake. Teak Wood gives you the warmth of timber without maintaining wood in salt air.

Glass selection is equally situation-specific. Clear maximizes natural light and is the standard for water-view openings. Low-E is the practical upgrade for west-facing exposures where afternoon sun heats a room. Frosted and Obscure serve bathrooms or street-facing bedrooms where privacy matters more than view. Black Tint and Gray Tint cut glare and add a sleek, finished look seen on higher-end new construction in Deerfield Beach.

Installation by TruePane Windows & Doors in Deerfield Beach

Here’s the thing about a 36-foot panoramic door: the product is only as good as the installation. A door that wide will reveal a 1/8-inch out-of-level condition as binding, gapping, or a panel that slowly drifts open on its own. TruePane Windows & Doors installs the VLX 138 the way ViewLux intends: level, plumb, and square, verified with laser levels before a single fastener goes in.

Our process starts with a pre-install inspection of the rough opening. We check the header, the subfloor, and the surrounding waterproofing plane before the door arrives. Then we set the frame, shim it to dead level, and anchor it per AAMA 2400/2410. Every perimeter joint receives AAMA 812 low-expansion foam, followed by interior and exterior sealant beads. After the panels are hung and the bearings adjusted, we run a full water test on the sill and track before we call the job done. Cleanup includes removing all packaging, old door debris, and sealant waste.

Deerfield Beach brings two realities to any door install: high humidity and hurricane code. Building officials here enforce wind-load and impact requirements based on your proximity to the coast. We pull permits when required, work with inspectors who know the product, and document everything. Improper installation voids the manufacturer’s warranty. That’s not a line item; that’s the reason to use an authorized partner rather than a general handyman for this door.

Frequently Asked Questions - VLX 138 Panoramic Sliding Door

Get a Quote - VLX 138 Panoramic Sliding Door in Deerfield Beach

If you’re ready to price a VLX 138 for your home in Deerfield Beach, call TruePane Windows & Doors at (786) 743-5882. We’ll schedule a free on-site measurement, review your glass and finish options, and give you a written line-item quote with no surprises. Like every project we do in Deerfield Beach, it starts with one conversation.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Deerfield Beach, FL.
