Wide openings used to force Deerfield Beach homeowners into a compromise: fixed glass that never opens, or a narrow operable panel that barely lets the ocean breeze through. The 3-Panel Sliding (3-Lite Roller) Window solves that problem with a horizontal roller configuration built around laminated impact glass across all three lites. You get the panorama, the light, and smooth gliding operation, without giving up HVHZ-rated storm protection. TruePane Windows & Doors supplies and installs these systems across PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, and we set every unit level, plumb, and square per AAMA 2400/2410 practice. Call (786) 743-5882 to schedule a free on-site measurement.

Call (786) 743-5882

Product Overview - 3-Panel Sliding (3-Lite Roller) Windows

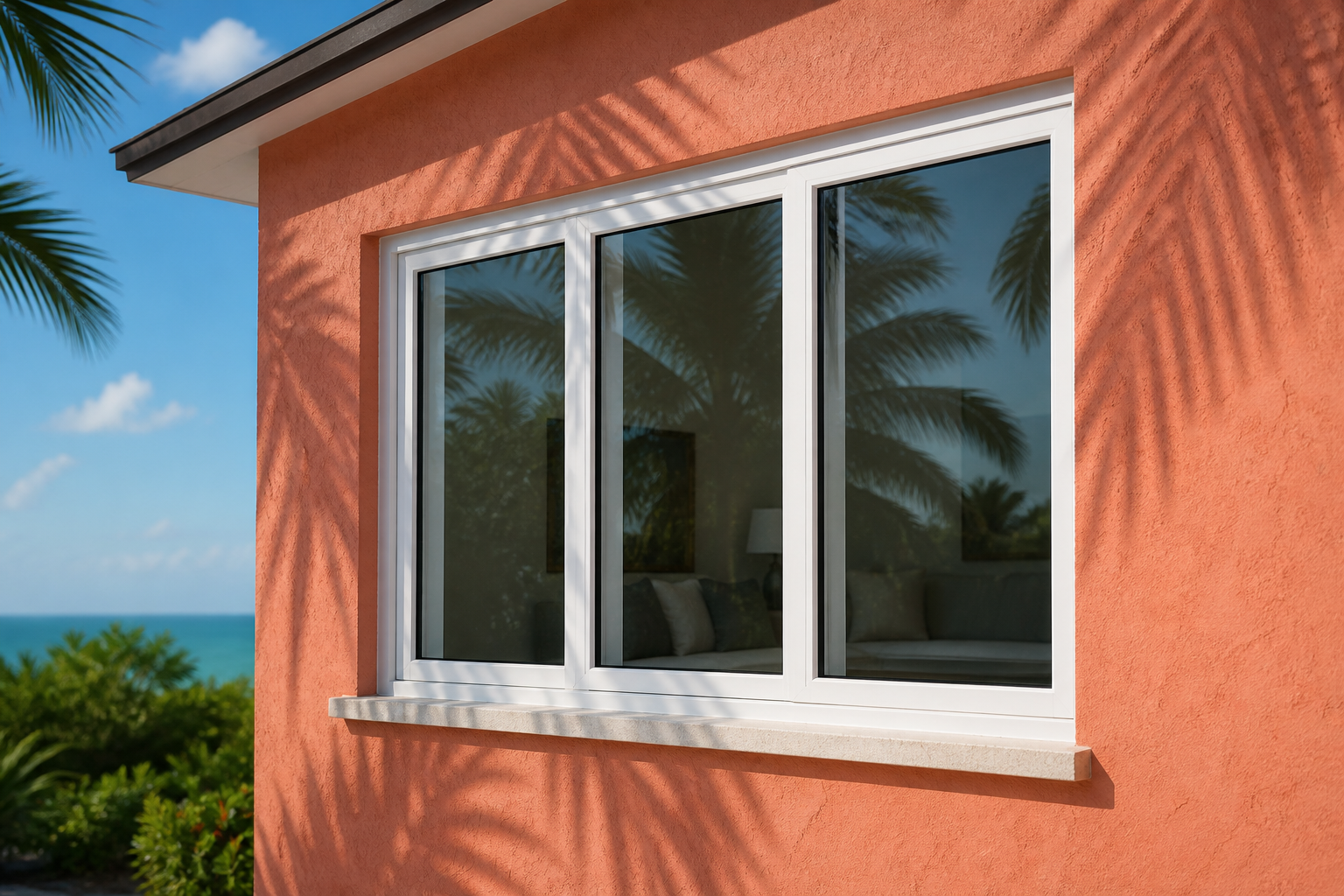

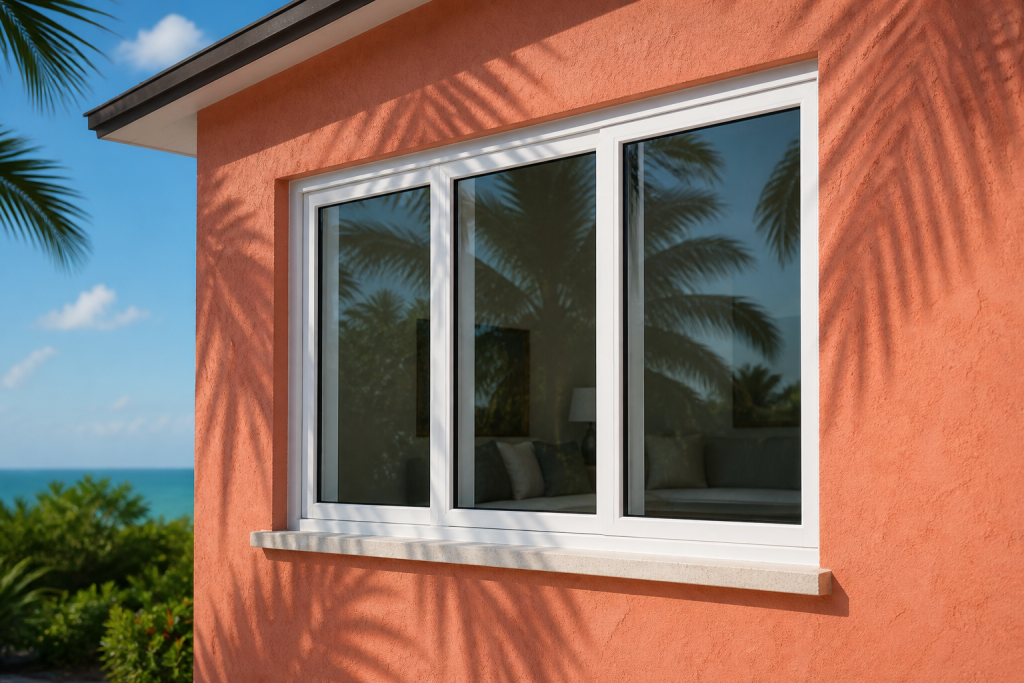

The 3-Panel Sliding (3-Lite Roller) Window is a three-lite horizontal roller system designed for wider openings where a two-panel slider would feel cramped or leave too little ventilation. In Deerfield Beach, we see these specified most often on canal-facing great rooms, second-story primary suites, and mid-century homes being brought up to current wind-code standards. The configuration gives you options: two fixed lites with one operable panel, or one fixed lite with two operable panels gliding past each other on independent tracks. That flexibility matters when you’re trying to balance sightlines with airflow on a specific wall.

The product name spells out what it is: three panels, sliding operation, roller hardware. What makes the Impact Series version different from a standard Florida builder-grade slider is the glass package. All three lites carry laminated impact glass with a PVB interlayer, which is engineered to hold the glass in the frame under impact. That’s the difference between a window that breaks into your living room during a storm and one that stays in its opening. Frame material comes down to project: aluminum for narrower sightlines and structural stiffness on large openings, vinyl for thermal performance and coastal corrosion resistance.

For homes in Deerfield Beach, where the wind zone and coastal exposure drive the permitting conversation, this window profile is one of the most requested in our catalog. It suits the horizontal-proportion architecture you see throughout Broward County, from the waterfront lots off Hillsboro Boulevard to the quieter streets east of Federal Highway. TruePane Windows & Doors has installed these systems in enough Deerfield Beach homes to know exactly how the openings from the 1970s and 1980s differ from what new construction calls for, and we spec the track configuration accordingly.

Technical Specifications

• Frame materials: Extruded aluminum or multi-chamber vinyl, specified by opening size and coastal exposure.
• Track configurations: 3-Lite with 2 Fixed + 1 Operable, or 3-Lite with 1 Fixed + 2 Operable.
• Glass options: Laminated Impact Glass (PVB interlayer), Low-E Insulated Glass, Tinted Glass, Clear Glass.
• Finish options: White, Almond, Bronze, Black, Tan.
• Screen options: Retractable Screen, Sliding Screen.
• Design pressure: Design pressures matched to your wind zone, up to +/-100 - never higher.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration; engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements.

Sizes are per-configuration, meaning each panel width and overall opening is confirmed against the approval documents for that exact combination of frame, glass, and track layout. We never mix approval numbers between configurations. Your quote shows the exact NOA or Florida Product Approval number that applies to your opening, so the permit submittal is clean the first time.

Hurricane & Compliance Performance

Laminated Impact Glass - All three lites carry laminated impact glass built with a PVB interlayer. Under impact, that interlayer holds the glass in the frame rather than letting it shatter inward. That’s the core of what makes this window a storm-protection product, not just a window.

Miami-Dade NOA / FL Product Approval - Compliance is documented per configuration, not per product family. The NOA and Florida Product Approval numbers on your quote match the exact frame, glass, and track layout you’re buying. Verify the number on your specific quote before permit submittal.

FBC/HVHZ Compliance - These systems are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. That’s the standard Deerfield Beach enforces, and it’s a stricter set of structural and impact rules than counties farther north in Florida follow.

TAS 201/202/203 Testing Context - This profile is tested under the protocol family HVHZ-rated products are evaluated against: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. Those three protocols cover impact, pressure cycling, and security.

Design Pressure for Your Wind Zone - Design pressures are matched to your specific wind zone, up to +/-100, never higher. That ceiling is intentional: we don’t sell a higher DP than your structure needs, because the window is only as good as the wall it’s anchored into.

Energy Performance - Low-E and insulated glass options are available across the 3-Lite Roller line. If you want the impact rating plus daytime heat rejection for a west-facing wall in Deerfield Beach, the Low-E insulated package is worth comparing on your quote.

Color & Glass Options

Frame finishes include White, Almond, Bronze, Black, and Tan. In Deerfield Beach, we see White and Almond specified most often on the older concrete-block ranches and Mediterranean-style homes west of Dixie Highway. Bronze and Black are the current favorite for modern coastal builds and for homeowners replacing bronze-anodized aluminum from the 1970s without wanting to change the look entirely. Tan tends to disappear into stucco and carries a softer visual weight, which works well on homes where the windows shouldn’t compete with landscaping or water views.

Glass selection runs four ways. Laminated Impact Glass is the base package that carries the storm rating and holds position under impact. Clear laminated glass gives you the most neutral light transmission. Tinted glass cuts glare and solar gain, which matters on south-facing walls. Low-E Insulated Glass adds a sealed air space and a low-emissivity coating for thermal performance. The Retractable Screen and Sliding Screen options let you decide whether you want a screen that disappears when the panels are closed or one that rides the track full-time. We’ll walk you through all of it during the measurement visit, because seeing samples against your actual stucco or siding makes the decision easier than looking at color chips online.

Installation by TruePane Windows & Doors in Deerfield Beach

Installation is where a window becomes a hurricane opening or stays just a window. The NOA approval on a 3-Panel Sliding (3-Lite Roller) system assumes the unit was set correctly. If the frame is racked, shimmed wrong, or sealed with the wrong product, the tested assembly doesn’t perform the way the approval documents say it will. That’s why we follow AAMA 2400/2410 installation practice on every opening we set in Deerfield Beach, and why we use AAMA 812 low-expansion foam perimeter sealant around the frame.

Our process starts with a pre-install inspection of the rough opening. We check the existing header, king studs, and sill for water damage or structural movement, especially in older Deerfield Beach homes where window openings were framed before current HVHZ fastening schedules existed. Then we set the frame level, plumb, and square. On a three-panel roller system, that’s non-negotiable, because a frame that’s out of square will bind the rollers or leave uneven panel gaps. We anchor per the approved fastening pattern for that configuration, foam-seal the perimeter, and run a final water test before interior trim goes back on. Cleanup includes hauling the old windows and job debris.

Deerfield Beach-specific considerations matter here. Coastal exposure means salt air working on the frame and hardware, so we verify the finish package and roller components match the distance from the ocean. Wind zone determines the design pressure we spec; we don’t guess and we don’t oversell. And because Deerfield Beach enforces HVHZ permitting requirements, we make sure the NOA or Florida Product Approval number on your paperwork matches what the plans examiner will look for. Improper installation compromises an NOA-rated system-period. The paperwork is only half of it; the setting is the other half.

Frequently Asked Questions - 3-Panel Sliding (3-Lite Roller) Windows

Get a Quote - 3-Panel Sliding (3-Lite Roller) Windows in Deerfield Beach

If you’re planning a window replacement or a renovation opening that calls for a wide horizontal roller with hurricane-impact glass, let’s get you a written quote with the exact configuration, DP rating, and NOA documentation for your Deerfield Beach home. Call TruePane Windows & Doors at (786) 743-5882 to schedule your free on-site measurement and we’ll take it from there.

Written by the team at TruePane Windows & Doors, serving Deerfield Beach, FL with hurricane-impact window and door installation.
